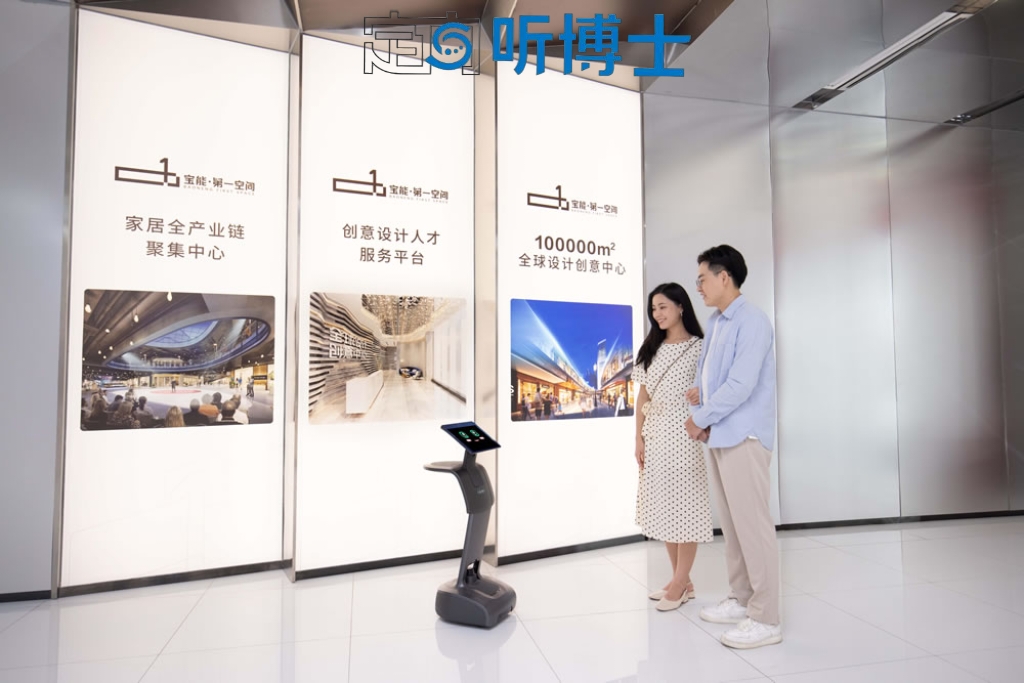

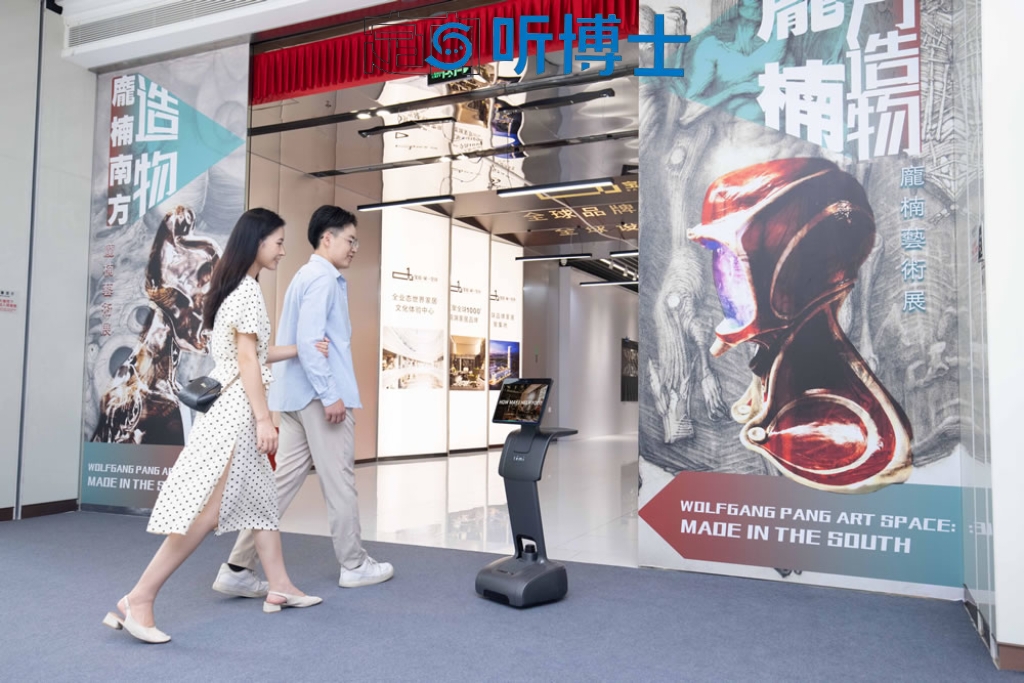

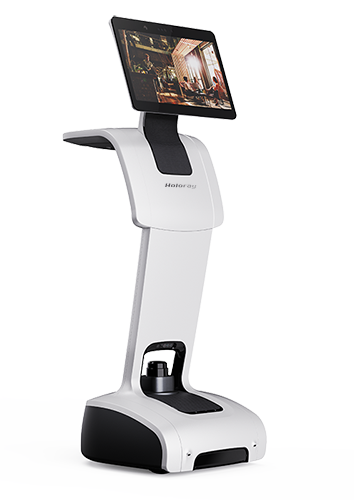

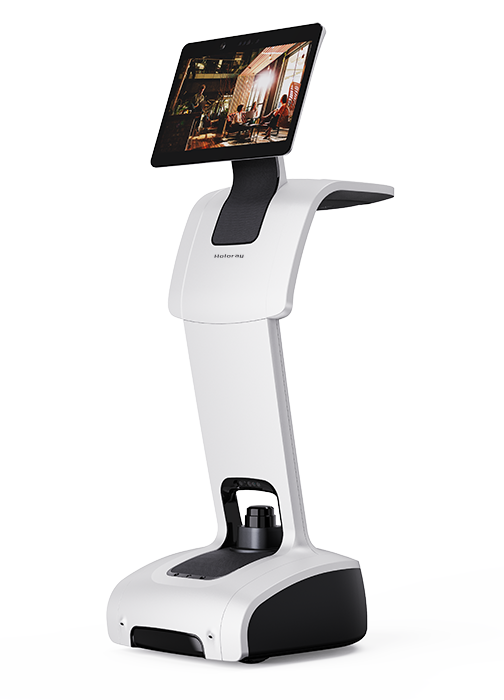

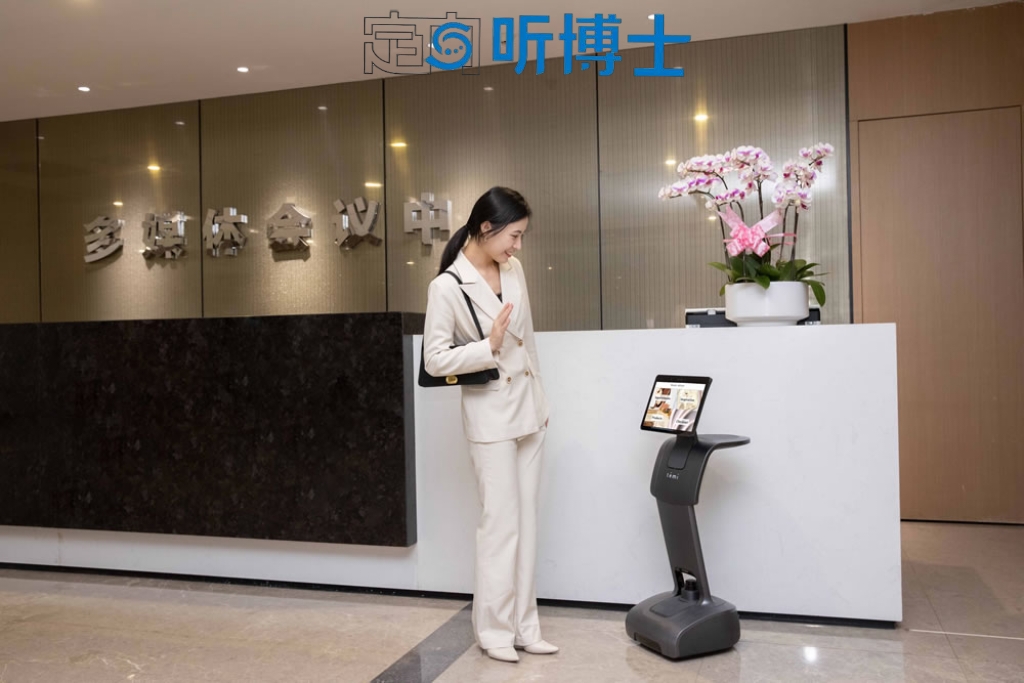

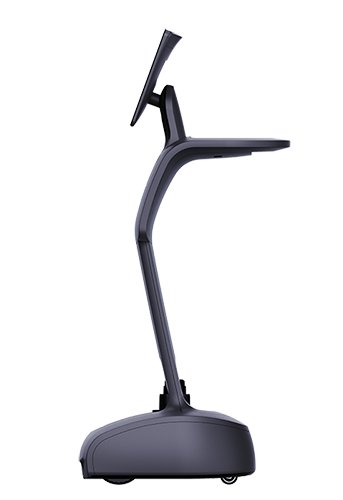

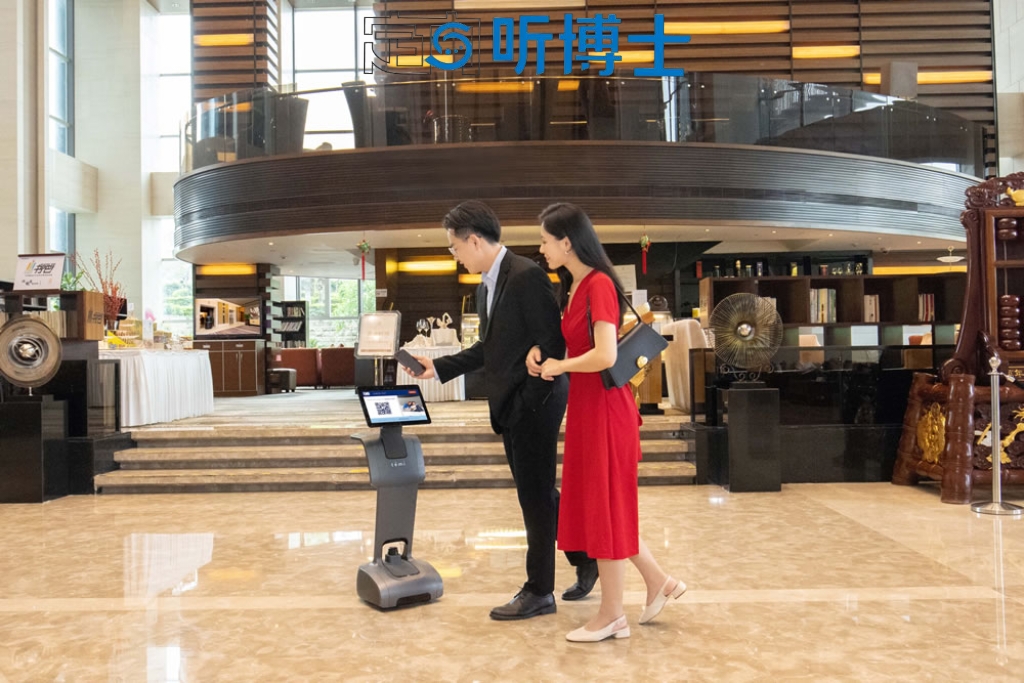

TINKER INTELLIGENT SERVICE ROBOT is a highly intelligent robotic platform. Leveraging its world-leading indoor navigation technology for exceptional autonomous mobility, highly sophisticated yet efficient algorithms, and multiple AI technologies—integrated with an open Android system—it has been widely deployed across the globe in smart offices, exhibition halls, intelligent buildings, healthcare and elderly care, commercial retail, hotels, real estate, smart government services, and more, delivering groundbreaking application experiences and unique commercial value.

FOUR KEY FEATURES OF TINKER:

1. Robot Operating System: The built-in application system of the robot.

2. Management Backend: A configuration and management platform for monitoring robot status, tasks, functional settings, map data, etc.

3. Mobile App: An auxiliary tool for convenient remote control and management of the robot.

4. Intelligent Interaction System: Equipped with speech recognition, natural language processing, and speech synthesis capabilities, with optional generative conversational AI services (large language models).

TECHNICAL SPECIFICATIONS

• High-Def Touchscreen: 13.3”, 1920×1080 resolution, 224 DPI

• CPU: ARM 6-core

• Memory: RAM 4GB+4GB; ROM 64GB+32GB

• OS: Android 11 + Linux

• Recognition Camera: 12MP high-resolution ultra-wide-angle, auto-focus, supports 1080P@30fps video recording, 5 lenses, built-in IR filter

• Audio Capture System: Omnidirectional digital microphone array, 360° sound source localization, acoustic echo cancellation, environmental noise reduction

• High-Quality Speakers: 2 tweeters, 2 mid-range speakers, 1 subwoofer, 1 Hi-Fi equalizer

• Sensors: 1 depth camera, 2 distance sensors, 1 IMU, 2 cliff detection sensors

• LiDAR: 360° long-range (＞40m) LiDAR system

• High-Precision Ground Sensor: Detects obstacles ≥5cm in height or 50cm in diameter and autonomously avoids them

• Navigation Accuracy: ＜5cm, with ***able precision levels

• Speed: Up to 1 m/s

• Mobility System: Dual-wheel differential drive

• Mapping Area: ≥10,000 m²

• Screen Tilt Angle: -15° to +55° with automatic face tracking

• Wireless Connectivity: Bluetooth 5.1 / Wi-Fi / 4G / 5G

• USB Ports: Type A / Type C

• External Power Interface: 12V

• Navigation System: ROBOX fully self-developed autonomous navigation system with obstacle avoidance, path planning, contour recognition, and intelligent following

• Battery Capacity: 14.7Ah@14.4V, 211.6Wh

• Auto Charging: Automatically returns to dock when battery is low (configurable threshold)

• Charging Time: 2.5–3 hours

• Operating Time: ~8 hours under normal use

• Net Weight: 13 kg

• Secondary Development: SDK provided for scenario-based application development, with open speech API support (ASR/NLP/TTS)
